To conclude, the shank of a wood screw is used to tightly compress two pieces of wood against each other and minimize the heating up of the screw caused by friction. This results in a strong firm hold between two wooden materials with little effort, and just as importantly, no broken screws.

Why do some screws have a smooth shank?

Some screws have a partially threaded shank to protect them against loosening. When driven into an object or surface, they'll stop automatically after reaching the end of the threading. And like fully threaded screws, they can be used either with or without nuts and washers.

Why do some screws not have threads all the way?

You might be wondering why some screws are designed with only partial threading. Well, the lack of complete threading allows for a higher level of security with the connected objects. If you're trying to join a sheet of plywood to a 2×4, for example, you might want to use a partially threaded screw.

What is a smooth shank screw?

Smooth shank Cut screw

Used when fixing wood to wood. The smooth shank part of the screw allows it to spin in the top piece of wood and then pull the bottom piece tightly against the top piece. Leaves no gap between the two. Screw head won't pull into the top piece of wood.

Why are wood screws slotted?

Slotted flat head wood screws are designed to adjoin two pieces of wood tightly and efficiently. Wood Screws are partially threaded with a shoulder below the screw's head designed to slide through the top pieces of wood so that it can pull both boards together tightly.

What is the difference between a metal screw and a wood screw?

Metal screws are threaded through the entire body, while wood screws are not. Furthermore, metal screws have more pitches — number of threads per inch — than their wood screw counterparts. It's also worth noting that metal screws are preferred for applications where self-tapping is needed.

What is the purpose of a bolt shank?

The shank is the threadless part of the bolt between the head and thread. There are two main ways of using the shank of the bolt. One is to make the shank increase the shearing capacity. The other way is to reduce the shank to increase the elastic resilience of the joint.

What are lag screws?

Also commonly known as lag bolts, lag screws are some of the toughest fasteners. These extremely sturdy fasteners are usually used to connect heavy lumber or other heavy materials that are bearing an intense load. These screws differ from normal wood, self-drilling or sheet metal screws.

Are partially threaded screws better?

When using partially threaded bolts, you can drive them into threaded holes, or you can use them for a bolt-through application along with a nut and washer. Partial threads are ideal for additional strength, shear resistance and critical alignment as opposed to better grip.

What are the 3 types of screws?

3 Common Screw Types at a Glance – Machine, Sheet Metal, and Cap Screws.

What is the hole that screws go into called?

That is simply called a threaded insert.

Why do some screws have a point?

Different types of screw points serve different purposes. For example, some are better suited for sheet metal or soft materials than others, while other points are designed for misaligned holes or minimizing the risk for surface cracking. Use this screw point type chart to find the best screw for your project.

Should you predrill wood screws?

First, drill a pilot hole through both boards. Pilot holes guarantee that your screw won't break off and your wood won't crack. For most hardwoods, the pilot hole should be at least as large as the screw's minor diameter. If the screw has deep threads, or the wood is very hard, the pilot hole should be another 1/64-in.

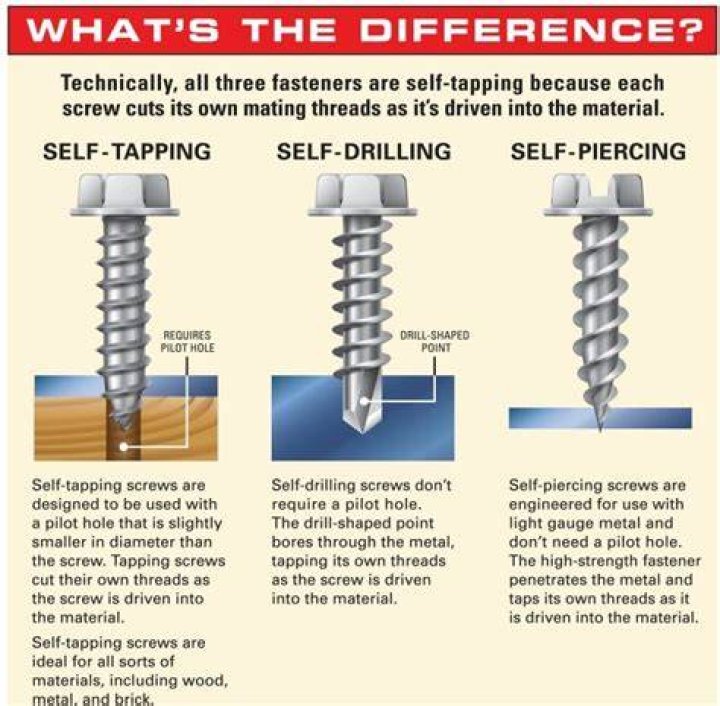

Are wood screws self-tapping?

Wood screws are self-tapping as well, tapping their own thread into the wood, making them perfect for any woodworking job. A type 17 point, also known as an auger point, is a feature on many wood screws which eliminates the need to drill a small pilot hole before inserting your fastener.

Are construction screws the same as wood screws?

Size. As a general rule, the major difference between construction screws and deck screws lies in their size. Construction screws are much longer than deck screws. For instance, deck screws manufactured by Maxx Fast Professional Hardware run 40 to 80 millimeters in length, or approximately 1.6 to 3.2 inches.

What is flathead screwdriver?

A "slotted flat blade screwdriver" is a long standard hand-tool dating back to the 1500s. It has a flat-bladed tip used to turn, fasten or loosen screws and bolts. The flat blade screwdriver is an extremely versatile tool and is used for fasteners of all sizes, providing significant leverage.

What is the purpose of a reed Prince screwdriver?

Also known as the Reed and Prince, this screwdriver is similar to a Phillips but with a cross shape. Frearson bits accommodate all Frearson screws, regardless of size. The Frearson head is tapered to a sharp point, which allows for higher applied torque than the rounded-tip Phillips.

Which tool is used to loosen or tighten slotted screws?

A screwdriver is used to manually tighten or loosen different types of screws. You hold a screwdriver by the handle. The shaft of a screwdriver connects the head and handle.

Do nuts go on screws?

A screw has external threads just like a bolt. But a screw is inserted into a threaded or unthreaded hole, and is tightened or loosened by turning its head. It may or may not be used with a nut. Wood screws and sheet metal screws make their own threads in the hole, so they are not used with a nut.

What goes on the other end of a screw?

Mating screws have a shoulder that matches the diameter of the sex bolts they are used with. Hanger bolts have wood thread on one end and machine thread on the other end.

What is meant by shank diameter?

Shank Diameter

Also called Major diameter. The diameter of a bolt is the Shank diameter, expressed in millimetres for Metric bolts. Because this is approximately the same as the Major or Thread diameter the thread diameter measurement can be used for fully threaded bolts.

What is a screw without head called?

A carriage bolt has a domed head that is not designed to be driven. A set screw may have a head the same size or smaller than the outer diameter of the screws thread; a set screw without a head is sometimes called a grub screw.

What kind of screws are best for wood?

Among the many materials wood screws are made from — brass, bronze, aluminum, etc. — steel screws are the most useful for woodworking and interior DIY projects. They're strong, affordable and readily available in a vast range of sizes. But old-fashioned tapered steel wood screws can be a pain to use.
