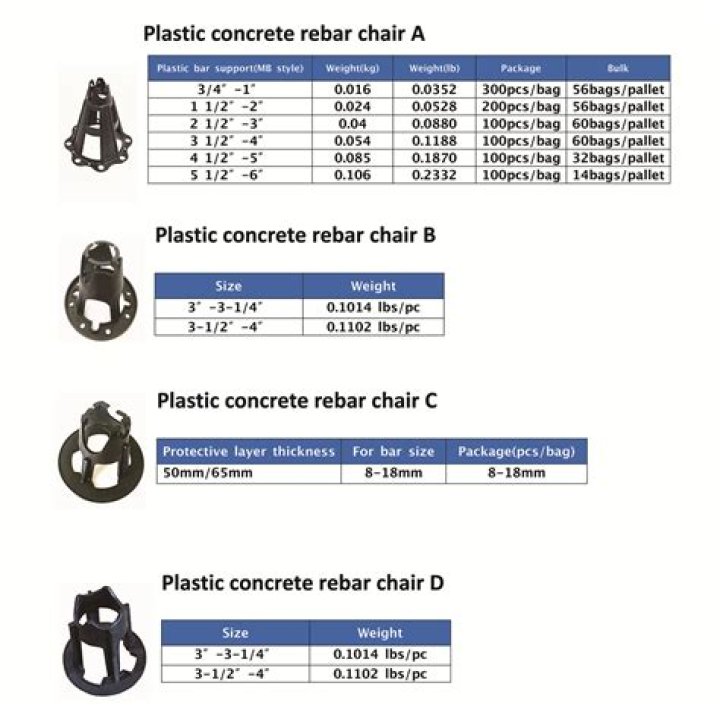

It is recommended to use 4no chairs for each sheet of Merchant size mesh (3.6Mtr x 2Mtr), and 5no chairs for Standard size mesh (2.4Mtr x 4.8Mtr).

How big is a sheet of concrete mesh?

Sheet sizes are 6000mm x 2400mm for Square and Rectangular Mesh. DIY Mesh sheet size is 4000mm x 2000mm. Square Reo Mesh sizes are: SL52, SL62, SL72, SL81, SL82, SL92, SL102.

How do you calculate concrete mesh?

To do this simply multiply the length of the slab by the width. Now that you have your area calculation, you need to divide the area by 12.5. This will give you the number of steel mesh sheets required to reinforce your concrete slab.

How big is a sheet of reinforcing mesh?

Standard sheet size 4.8m long x 2.4m wide, giving a sheet area of 11.52m2.

What size is a sheet of steel mesh?

Traditional Standard Mesh fabric is manufactured in sheet size 4.8 metre x 2.4 metre.

What size is A193 mesh?

A193 2.4m x 4.8m (Standard Size) Reinforcement Mesh Fabric

A193 mesh is most commonly used in light to heavy duty domestic and industrial concreting in walls and floor slabs with a thickness or depth ranging from 100mm to 200mm.

What is mesh particle size?

What is Mesh Size? U.S. Mesh Size (or U.S. Sieve Size) is defined as the number of openings in one square inch of a screen. For example, a 36 mesh screen will have 36 openings while a 150 mesh screen will have 150 openings.

How many spacers do you need for reinforcing mesh?

Recommended Spacing:

Minimum of two spacers per m2.

Do I need concrete reinforcing mesh?

Rebar is not necessary for every concrete project. The general rule of thumb is that if you are pouring concrete that is more than 5 inches in depth, you are probably going to want to add in some rebar to help reinforce the entire structure.

What is rebar mesh?

Rebar, abbreviated from reinforcing bar, is also manufactured making use of steel alike Wire Mesh. These are rounded bars with seams that are usually in sizes differing by 1/8th-inch of thickness. Rebar makes use of more space in comparison to wire mesh as it is laid in larger square sections.

What is the maximum spacing of bar chairs?

Bar chairs must be spaced at not more than 800 mm centres for steel fabric.

How are slab chairs calculated?

Height of chair:

1. Height of chair = Height of footing – ( 2 x Clear cover) – (Dia of bottom main bar) – (Dia of top main bar + Dia of top distribution Bar)
2. = 550 – ( 2 x 25) – 12 – (16 + 12)
3. = 460 mm.
4. Length of Head = (2× Spacing of distribution bar) + (2×25)
5. = (2 x 150) + ( 2 x 25)
6. = 350 mm.

What is SL 72 mesh?

ONEMESH® Ribbed Square Mesh supplied by InfraBuild Construction Solutions (formerly LIBERTY OneSteel Reinforcing) is commonly used in reinforced concrete slabs such as pavements, flooring, precast panels, warehouse and industrial shed slabs, tilt-up slabs, driveways and patio slabs.

Does a concrete slab need wire mesh?

YES When long joint spacing is required or when joints are unacceptable in floor use. Although short joint spacings alleviate the need for reinforcement, wire mesh will allow for increased distance between joints if correctly placed in the upper portion of the slab, at least two inches below the surface.

What size is SL72 mesh?

Mesh - Concrete Mesh - Reinforcing Mesh - Square, Size SL72 - Area(m) 6X2.

Do you need rebar for 4 inch slab?

For 4” concrete slabs used for driveways and patios, #3 rebar is common. Driveways that will support daily traffic by heavy trucks frequently use 1/2″ or #4 steel bar.

Do you need rebar for 6 inch slab?

Rebar is recommended for concrete that measures 5-6 inches in depth. The type of and intended use of concrete impacts the need for rebar reinforcement. Rebar must be placed at the center of or slightly above the center of the concrete slab—hence why it should be a certain thickness for best results.

How deep should mesh be in concrete?

Use wire mesh for driveways that are 4 to 5 inches thick, and rebar for those that are 5 inches or more. Place rebar in a grid pattern with a spacing between bars of approximately 12 inches. In either case, blocks should be used under the reinforcement to keep centered within the concrete.

How do you overlap concrete mesh?

The overlaps should be held together with tie wire. Where trench maps are joined end to end, they need to be overlapped by at least 500 mm. Where they overlap at T or L intersections the overlap should be the width of the trench mesh. Square mesh lap has to be overlapped by at least 225 mm.

How is mesh reinforcement calculated?

How to Estimate Concrete Reinforcement Mesh

1. area = length × width.
2. mesh needed = slab area ÷ mesh area.
3. lapping percentage = overlap ÷ reinforcement width.

What size is A252 mesh?

A252 2.4m x 4.8m (Standard Size) Reinforcement Mesh Fabric.

How do you calculate mesh size?

Figuring out the mesh number is simple. All you do is count the number of openings in one linear inch of screen. This count is the mesh number. A 4-mesh screen means there are four little square openings across one inch of screen.

How do I choose mesh size?

Choosing a suitable mesh size

1. Perform chosen analysis for several different mesh sizes.
2. Notice where high deformations or high stresses occur, perhaps it is worth to refine mesh in those regions.
3. Collect data from analysis of each mesh: outcome, number of nodes in the model, computing time.
